PR70F Software Change History

With 24E451 Advanced Display Module

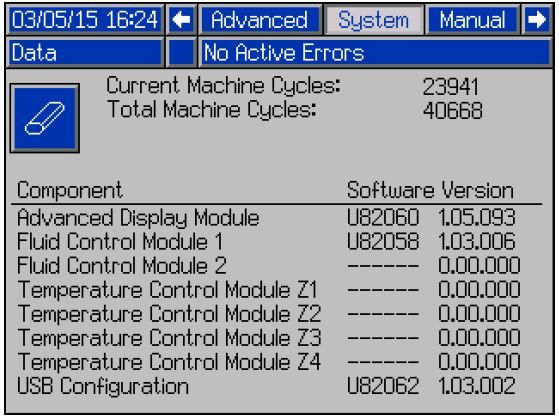

The Version History of PR70F software is listed below. The software currently installed on a PR70F system can be found by navigating to System Screen. All PR70F systems (with 24E451 Advanced Display Module) should match one of the following system versions. To upgrade to a newer software version, order the appropriate “Software Upgrade Token” as listed below.

Software Upgrade Token: U82161 Series U

  • System U82321u.gti (Software Link) Version 1.02.003
  • Advanced Display (ADM):  U82060 version 1.07.003
  • Fluid Control Module (FCM3):  U82058 version 1.04.001
  • USB Configuration: U82062 version 1.04.004
  • Temperature Control Module: 15M871 version 1.08.002

Change History

  • Updated software to allow TOF hoses to work with PR70F. By allowing the software to auto detect the RTD resistance between the PR70 hoses (1000 ohms) and the TOF hoses (100 ohm)

Software Upgrade Token: U82161 Series T

  • System U82321 Version 1.02.001
  • Advanced Display (ADM):  U82060 version 1.07.001
  • Fluid Control Module (FCM3):  U82058 version 1.04.001
  • USB Cnfiguration: U82062 version 1.04.004
  • Temperature Control Module: 15M871 version 1.07.005
  • ADM:  Fixed issue where user was not able to enter a zero shot amount, from a non-zero value on the setup Edit screens.
  • Ported the ADM logic to the GCA2 platform, to enable future improvements to the platform
  • FCM3:  Ported the logic to the GCA2 platform.

Software Upgrade Token: U82161 Series S

  • System U82321 Version 1.01.018
  • Advanced Display (ADM):  U82060 version 1.06.128
  • Fluid Control Module (FCM3):  U82058 version 1.03.164
  • USB Cnfiguration: U82062 version 1.03.004
  • Temperature Control Module: 15M871 version 1.07.005
  • ADM:  Added the "Delta Grams" amount columns to the shot entry Edit screens.  Improved the boot up logic which TX's shot amount data from the ADM ---> FCM3 #1 in a Power up condition.
  • FCM3:  Added "CycleAndCount" portal function to a FCM3 #2 output.

Software Upgrade Token: U82161 Series R

  • System U82321 Series R
  • Advanced Display (ADM):  U82060 version 1.06.102
  • Fluid Control Module (FCM3):  U82058 version 1.03.162
  • USB Cnfiguration: U82062 version 1.03.004
  • Temperature Control Module: 15M871 version 1.07.005

FCM3:  Corrected issue where the Ratio displayed to the user was not consistently visible to the user if Ratio Monitoring option was selected.

Software Upgrade Token: U82161 Series P

  •  Advanced Display (ADM):  U82060 version 1.06.102
  • Fluid Control Module (FCM3):  U82058 version 1.03.161
  • USB Cnfiguration: U82062 version 1.03.004
  • Temperature Control Module: 15M871 version 1.07.005

ADM:

  • Fixed an intermittent issue with the Light tower logic, where when an error (Advisory, Deviation or Alarm) clears on the ADM, it would not clear on the light tower

Software Upgrade Token: U82161 Series N

  • Advanced Display (ADM):  U82060 version 1.06.100
  • Fluid Control Module (FCM3):  U82058 version 1.03.161
  • USB Cnfiguration: U82062 version 1.03.004
  • Temperature Control Module: 15M871 version 1.07.005

ADM & FCM3:  Made the following improvements to the product:

  • Added capability to turn OFF generation of the Set Point (requested flow) Not Reached Deviation.
  • Fixed Ball Valve Indication Reporting for the Manual setup Screen.

Software Upgrade Token: U82161 Series M

  •  Advanced Display (ADM):  U82060 version 1.06.097
  • Fluid Control Module (FCM3):  U82058 version 1.03.158
  • USB Cnfiguration: U82062 version 1.03.004
  • Temperature Control Module: 15M871 version 1.07.005

ADM & FCM3:  Made the following improvements to the product:

  • Added additional logic to ensure proper operation of an Active Ball valve (“Check Valve”) installed between the “A pump” outlet and the MD2.  Since the valve is controlled by FCM3 #2 and the dispense is controlled FCM3 #1, additional FCM3 to FCM3 communication logic was added to ensure the pump did not stall at the pump entrance or in the metering tube during a dispense.
  • The logic which implements the “X Pump Low Pressure Limit” function was improved to ensure the system can detect if a pump is not properly loaded, due to a failure of an accumulator at a pump inlet.
  • The ADM based logic which detects a communication problem between the ADM & a FCM3 was modified to execute less frequently, to help prevent erroneous error generations.
  • Raised Max. possible control output, based on air line pressures seen from a field site visit.

Software Upgrade Token U82161 Series L

  • Advanced Display (ADM):  U82060 version 1.06.092
  • Fluid Control Module (FCM3):  U82058 version 1.03.151
  • USB Cnfiguration: U82062 version 1.03.004
  • Temperature Control Module: 15M871 version 1.07.005

FCM3:  Made the following improvements to the product:



  1. Added improvements to the X “Pump High Pressure Limit” logic, to have it react quicker and more consistently to an over-pressure limit entered by a user for a particular pump.
  2. Added logic to have the system look and abort a dispense if an over pressure condition occurs after a flow set point reduction occurs due to the “Slow Down at High Pressure” function is turned ON.  This and item 1 makes the product better suited for dispensing pressure sensitive materials, typically filled will hollow spheres.
  3. Fixed an issue where the logic was not properly storing the requested On/ Off state of the ““Config. PLC Bit3 to Error Acknowledge” feature.
  4. Added additional integration control adjustment logic to make the control react quicker if the current flow is significantly less, or significantly more than its flow set point.

Software Upgrade Token U82161 Series H

  • Advanced Display (ADM):  U82060 version 1.06.078
  • Fluid Control Module (FCM3):  U82058 version 1.03.131
  • USB Cnfiguration: U82062 version 1.03.003
  • Temperature Control Module: 15M871 version 1.07.005

ADM & FCM3 Added the following features to the product:

  1. Added a “Base Purge” feature.  This feature is available on systems which have the Accumulator refill option for the A side material.  If activated via the “ 1:0” key (see image below), the A side supply feed is turned ON, and the dispense and active ball valve (if installed) are turned ON to fill the static mixer with A side material.
  2. A “Metering Tube Entrance Adjustment” feature was added enabling to user slightly adjust the metering tube entrance position via software.  This is to assist with the 1st bead dispense when the pumps are loaded and the pistons are at the tube entrance.  Not only will the adjustment assist with “snake-heads” at the start of a bead, but will provide an adjustment if the pump pistons begin to wear.
  3. The modified the logic providing the “READY – OUTPUT” for an automation application, where the “READY – OUTPUT” will NOT be ready if the pumps are retracted and the “Auto-Load Pump After Dispense” feature is turned ON.  For this condition, the PR70F will still accept a shot request even if the machine is providing a NOT ready indication.
  4. Fixed some pump reload and stall to pressure issues found during testing with the product connected to a table top automation cell.
  5. Fixed a PLC interface issue pertaining to the shot selection control bits, found during testing.

Software Upgrade Token U82161 Series G

  • Advanced Display (ADM):  U82060 version 1.06.069
  • Fluid Control Module (FCM3):  U82058 version 1.03.116
  • USB Configuration: U82062 version 1.03.003
  • Temperature Control Module: 15M871 version 1.07.005

ADM & FCM3 Added the following features to the product:

  1. Added or corrected logic to drive an active check/ Ball valve installed between a pump output, and an MD2 input port. The valve was installed to support dispensing materials with pressure sensitive spheres.
  2. A check box option titled “Active Check Valve Installed” was added (it was removed at last minute in previous version) to a setup screen to turn ON the new logic for the feature.
  3. Added a soft key option to the Manual setup screen, if the Active ball (or “Check”) valve is installed, enabling the user to Open or Close the valve.

Software Upgrade Token: U82161 Series F

  • Advanced Display (ADM):  U82060 version 1.06.061
  • Fluid Control Module (FCM3):  U82058 version 1.03.100
  • USB Configuration: U82062 version 1.03.003
  • Temperature Control Module: 15M871 version 1.07.005

ADM, FCM3 & USB- Added the following features to the product:

  1. Logic was added to support an Active Check Valve, to support dispensing materials with pressure sensitive spheres.  A check box option titled “Active Check Valve Installed” was added to a setup screen to turn ON the new logic for the feature.
  2. Added text strings to the USB logs to indicate if there is a failure with an installed active check, or if the pumps are slowed down due to the material reaching a high pressure entry.
  3. Fixed an Operator Mode dispense issue, if the machine has two point calibration data (small and large amount shot data) loaded into the machine.  Unlike the PR70, the PR70F does NOT need the 2 point shot data loaded to operate properly.

Software Upgrade Token: U82161 Series D

  • Advanced Display (ADM):  U82060 version 1.06.056
  • Fluid Control Module (FCM3):  U82058 version 1.03.097
  • USB Configuration: U82062 version 1.03.002
  • Temperature Control Module: 15M871 version 1.07.005

ADM, & FCM3 - Added the following features to the product:

1.     Small amount shot mode capability, for dispensing very small dispense amounts in shot mode!

2.     "Hold at Retract Time" entry capability (for dispensing thick material).

3.     "High Speed Retract" capability.

4.     Pump "High Pressure Limit" capability (for dispensing Pressure sensitive spheres).

5.     Slow Down at High Pressure" capability (for dispensing pressure sensitive spheres).

Also added logic to fix an intermittent issue where recipe data was not retrieved after boot up on the ADM module.  Logic was added to help improve sequence mode operation.

Software Upgrade Token: U82161 Series D

  • Advanced Display (ADM): U82060 version 1.06.029
  • Fluid Control Module (FCM3): U82058 version 1.03.061
  • USB Configuration: U82062 version 1.03.002
  • Temperature Control Module: 15M871 version 1.07.005

ADM & FCM3:

  • Fixed issue where user was not able to configure heat zones via the Setup Options #2 screen. Added a “Reload Only on INTERRUPT-CAN.” Feature to the PLC interface, where if “checked”, the PR70F will only reload the pump and not retract when the control line is activated. This feature was requested by a customer in Columbus Ohio, USA.

Software Upgrade Token: U82161 Series C

  • Advanced Display (ADM): U82060 version 1.06.026
  • Fluid Control Module (FCM3): U82058 version 1.03.058
  • USB Configuration: U82062 version 1.03.002
  • Temperature Control Module: 15M871 version 1.07.005

ADM & FCM3:

  • Added capability to define and select up to 100 shot recipes, from the original 50 recipe capability. 50 Additional part or shot counters were also added to the data run screen, and sequence selection logic was also enhanced to enable the additional capability.

Software Upgrade Token U82161 Series B

  • Advanced Display (ADM): U82060 version 1.06.020
  • Fluid Control Module (FCM3): U82058 version 1.03.037
  • USB Configuration: U82062 version 1.03.002
  • Temperature Control Module: 15M871 version 1.07.005

ADM & FCM3:

  • Added Variable Ratio capability, added Low Pressure Error Generation Feature, Removed Delta V & P Features, Added Ratio SP to Display in XX:1 and 100:xx formats, and Updated Font Generation Feature to better support Non-Latin Based Languages.

Software Upgrade Token U82161 Series A (no longer available for sale)

  • Advanced Display (ADM): U82060 version 1.05.126
  • Fluid Control Module (FCM3): U82058 version 1.03.028
  • USB Configuration: U82062 version 1.03.002
  • Temperature Control Module: 15M871 version 1.07.005

ADM & FCM3:

  • Added Light Tower Capability, and an Auto-Retract feature. Made some improvements to the control learning logic.

Software Upgrade Token Father_PR70EReg.gti Series ? (no longer available for sale)

  • Advanced Display (ADM): U82060 version 1.05.119
  • Fluid Control Module (FCM3): U82058 version 1.03.015
  • USB Configuration: U82062 version 1.03.002
  • Temperature Control Module: 15M871 version 1.07.005

ADM, FCM3 & USB:

  • Last Prototype Version Installed at Columbus OH Field Site Customer location.

See instruction manual 334984 for complete details on the PR70F 2 Component Dispense/ Metering System. The latest revision manual can be found at graco.com.



Read, understand and follow all instruction manuals and warning labels supplied with all equipment. Only trained and qualified personnel should perform repairs on the equipment. To access the latest manuals in your preferred language go to "www.Graco.com" and use the "Search" function.
