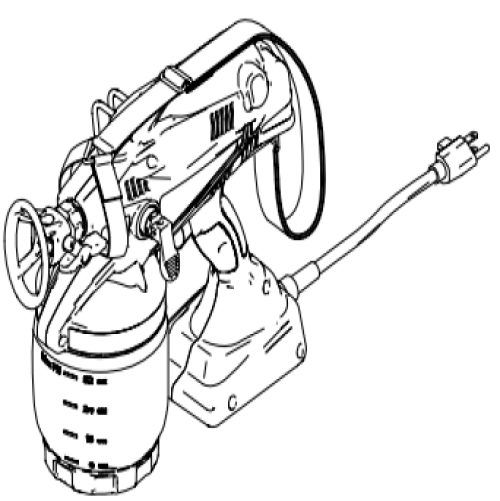

TrueCoat Plus Home Centers - 258875
Slow speed of movement.
Make sure material and tip are compatible. See Reversible Tip Selection Chart, page 13.
Make sure compatible material is being used. See Reversible Tip Selection Chart, page 13.
Clean or replace Fine Finish Optimizer. See page 10.
Switch to compatible material.
Replace sprayer.
Move sprayer faster while spraying.
Move sprayer away from surface 10 in. (25 cm)

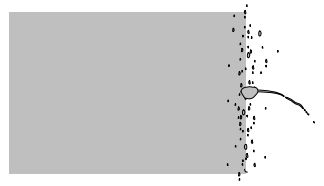

Release trigger when changing directions.
See Reversible Spray Tip Selection Chart, page 11.
See Reversible Tip Selection Chart, page 13.
Replace tip. See Install Tip/Guard Assembly, page 13.
Move sprayer away from surface 10 in. (25 cm)
See Reversible Tip Selection Chart, page 13.
Replace tip. See Install Tip/Guard Assembly, page 13.
Move sprayer closer to surface.
See Reversible Tip Selection Chart, page 13.
See Shutdown and Cleaning, page 16.
Clean or replace filter. See page 15.
See Install Tip/Guard Assembly, page 13.
Replace spray tip/guard assembly.
Replace sprayer
See Install Tip/Guard Assembly, page 13.
Fine Finish Optimizer is installed while using an incompatible material. Make sure compatible material is being used. See Reversible Tip Selection Chart, page 13.
Sprayer is worn out. Replace sprayer.
Disengage trigger lock. See page 9.
Plug in sprayer or check outlet for power.
Wait 20-30 minutes for motor to cool.
Push and hold circuit reset button (see pages 6 and 7).
Setup the sprayer. See Starting a new Job (or Refilling the Cup), page 12. If sprayer fails to prime, follow the Alternative Priming Method (page 23) and/or Inlet Valve Cleaning (page 24).
Pull control lever DOWN to spray position.
Make sure Suction Tube is properly installed.
Use a pencil or thin rod to lightly push on inlet valve to make sure it moves up and down freely, see page 12. Inlet valve may need to be removed and cleaned. See Inlet Valve Cleaning, page 24.
Turn tip to SPRAY position.
See Unclogging Tip/Guard Assembly, page 15.
See Shutdown and Cleaning, page 16.
Make sure cup is filled with material. Do not tilt the cup too far. Setup the sprayer. See Starting a new Job (or Refilling the Cup), page 12.
Refill material cup with material.
Remove and clean tip filter. See Unclogging Tip/Guard Assembly, page 15.
Make sure compatible material is being used. See Reversible Tip Selection Chart, page 13.
Replace Suction Tube and o-rings.
Replace sprayer.
Replace sprayer.
Flush the pump. See Setup, page 10.
See Unclogging Tip/Guard Assembly, page 15.
Rotate spray tip to SPRAY position.
See Reversible Tip Selection Chart, page 13.
Clean or replace filter. See page 15.
Clean or replace Suction Tube. See page 16.
Clean or replace Fine Finish Optimizer. See page 10.
Make sure compatible material is being used. See Reversible Tip Selection Chart, page 13.
Replace tip. See Install Tip/Guard Assembly, page 13.
Replace sprayer
Fine-Finish Optimizer is not installed. See page 10.
Sprayer has reached its maximum life.
Replace sprayer.
Sprayer is working properly.
The issue is resolved. Strain your paint to avoid further issues.
Flush the sprayer with hot soapy water or 100% mineral spirits.
If this still does not resolve the issue the fluid pump may need to be replaced.
You will need to create a Salesforce case to escalate the call to a Graco Tier II tech.
Please advise the customer they will be contacted back by a Tier II Technician
• Check to make sure that the cup is securely attached to the sprayer.
• Make sure there is an "O" ring on the inlet of the sprayer.
• Check to make sure all of the air has been pushed out of the flexliner before spraying.
• Make sure the VacuValve is closed tightly.
There is an air leak.
• Check to make sure that the cup is securely attached to the sprayer.
• Make sure there is an "O" ring on the inlet of the sprayer.
• Check to make sure all of the air has been pushed out of the flexliner before spraying.
• Make sure the VacuValve is closed tightly.
Fluid pump may need to be replaced.
You will need to create a Salesforce case to escalate the call to a Graco tier II tech.
Please advise the customer they will be contacted back by a Tier II Technician.
