Choose The Correct Spray Tip/Guard

What is the difference between Graco airless spray tips i.e... (RAC, LL5, FFT, GHD, RAC X, LP, FFLP)?

Graco makes spray tips for every type of job. All are manufactured with the highest quality tungsten carbide, tested for flow rate, and liquid-honed for longer life. Reverse-A-Clean® (RAC) tips are designed for easy tip unplugging and quick tip changes.
The chart below summarizes the range of tips and their part number code.

Part Numbers
286XXX - RAC 5 SwitchTip (Mainly sold in the home center market) Has been replaced with the TRUEairless tip

221XXX - RAC IV SwitchTip (Sold in the Home center market)

FFTXXX - Fine Finish RAC Tip (Sold in the professional market) Replaced with the FFLP

LL5XXX - LineLazer RAC Tip (Sold in the pavement market)

LPXXX - Low Pressure tip (Sold in the professional market)

FFLPXXX - Fine Finish Low Pressure Tip (Sold in the professional market)

TRUXXX - TRUEairless tip (Sold in the home center market)

TCPXXX - Used in the handheld sprayers (with the exception of the 360, they use PN 17A223)

GHDXXX - Heavy-Duty RAC Tip (Sold in the Roofing Market)

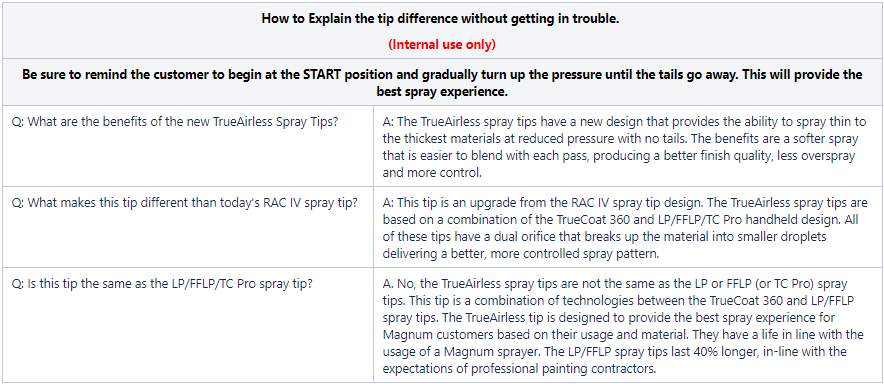

TRUEairless Tip - This tip is now shipped with all SG guns and new Magnum sprayers.

Ideal for remodeling contractors, DIYers and Homeowners
Softspray Technology makes it easier to achieve a professional finish by delivering a softer spray pattern to easily blend each spray pass
Experience less prep and clean-up time with reduced overspray
Ability to spray the thickest paints at the lowest possible pressure
Reverse-A-Clean design makes it easy to clear tip clogs
Magnum sprayers include a 515 TrueAirless spray tip, just one of 16 available TrueAirless tip sizes

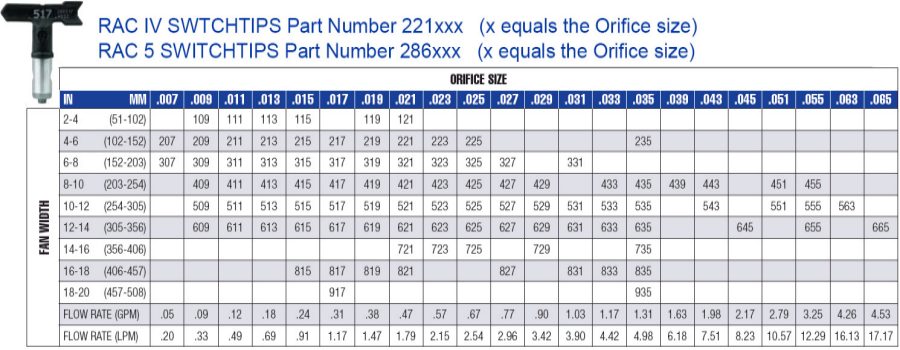

How to Choose a Spray Tip/Guard Magnum

This guide can also be used for RAC IV and RAC V tips.

Optional Tips For Orange Guard Part Number 243161

How to Choose a Spray Tip Handhelds

IMPORTANT TrueCoat 360's use only the tips that are provided with the sprayer. They have a narrow or wide option. They can NOT use any other tips. They can still purchase replacement tips for this sprayer.

What is the difference between Graco airless spray tips i.e... (RAC, LL5, FFT, GHD, RAC X, LP, FFLP)?

How to Choose a Spray Tip/Guard Magnum

**This guide can also be used for RAC IV and RAC V tips.**

How to Choose a Spray Tip Handhelds

**IMPORTANT** TrueCoat 360's use only the tips that are provided with the sprayer. They have a narrow or wide option. They can NOT use any other tips. They can still purchase replacement tips for this sprayer.

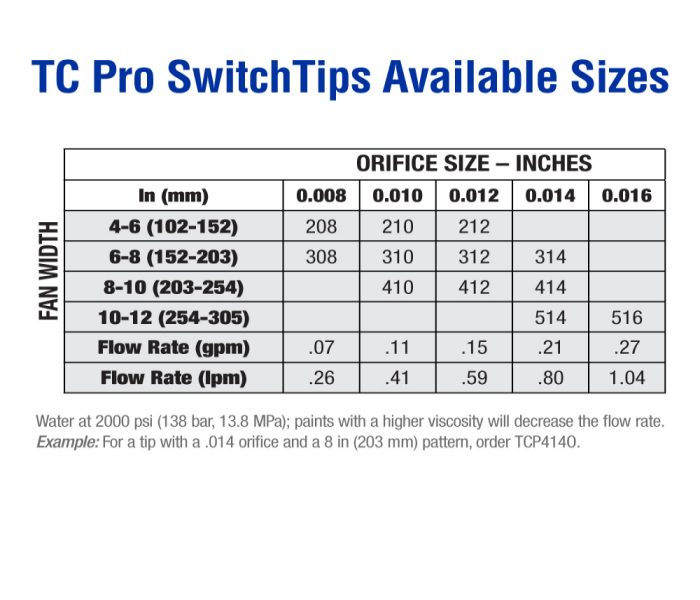

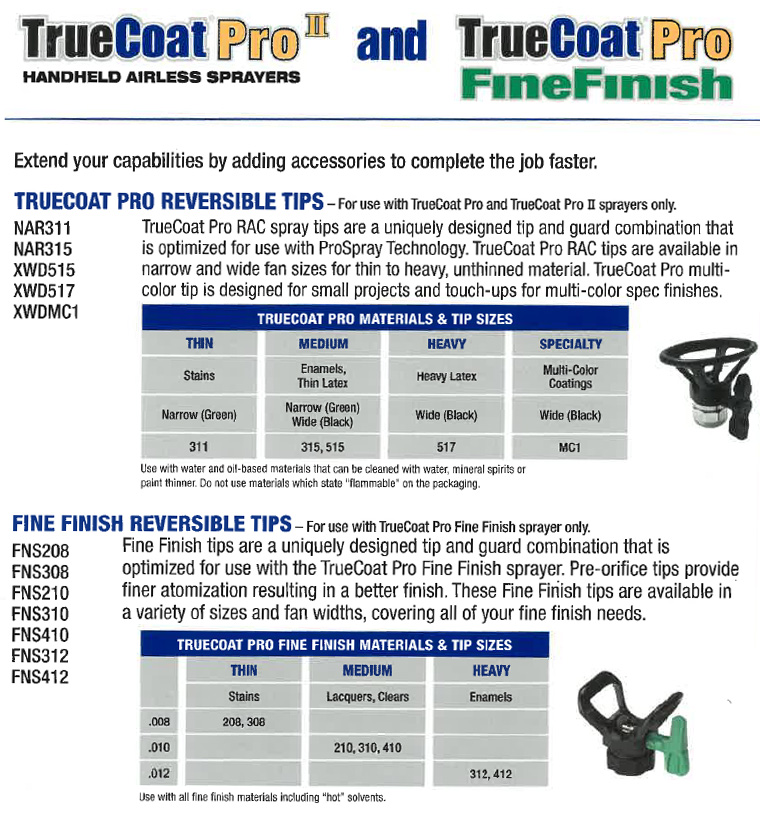

How To Choose A Spray Tip TrueCoat Pro Handhelds

This guide can also be used for RAC IV and RAC V tips.

IMPORTANT TrueCoat 360's use only the tips that are provided with the sprayer. They have a narrow or wide option. They can NOT use any other tips. They can still purchase replacement tips for this sprayer.
