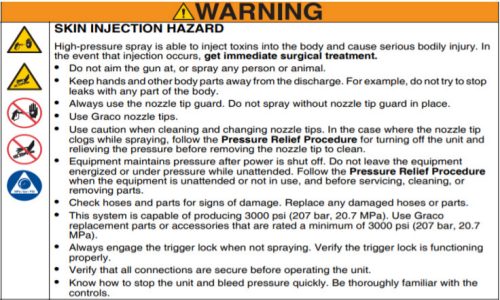

Warning
Magnum and Handheld

Quick Tips

Magnum Sprayer Won't Pick Up Paint

Follow These Troubleshooting Steps:
1. Toggle Power Switch - 1:01 in the video
2. Free The Inlet Ball - 1:44 in the video
3. Clean The Outlet Valve - 2:24 in the video
4. Clean The Inlet Valve - 3:18 in the video
5. Power Flush - 4:18 in the video

To email this video, copy the link below:
https://bcove.video/3sXUinn

HandHeld Sprayer Wont Pick Up Paint

Troubleshooting Steps:
1. Make sure cup is securely tightened to cup support
2. Make sure cup assembly is properly locked onto sprayer
3. Make sure all air is out of the flexliner
4. Make sure Vacuvalve is closed
5. Make sure Spray knob is in the Spray position

To email this video, copy the link below:
https://bcove.video/34aC6wr

How to Clear a Tip Clog

To email this video, copy the link below.
https://bcove.video/32TqBah

The Hose is Leaking at the Sprayer

To email this video, copy the link below.
https://bcove.video/3HC3zG0

Tier 2 Technical Assistance availability is: 7:30 am to 6:00 pm CDT Monday thru Thursday 8:00 am to 8:00 pm CDT Friday, Saturday, and Sunday

https://www.graco.com/us/en/homeowner/support/education-center.html

Series Code (Old Style ID Tag):
The first character is a letter from  A-L
 - (A=January  L=December)
 - First letter = month of production

The second & third characters are the 2 numbers of the year of production.

The 4th character is the Series code.

New Style ID Tag:

The first four characters of the "Serial Number" are the series code.

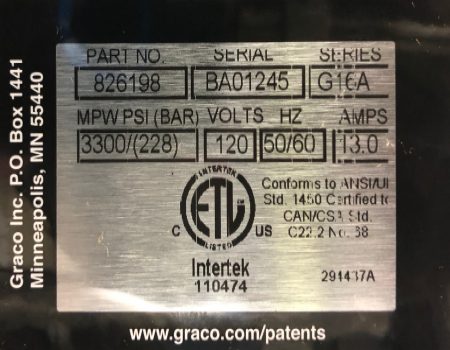

Old Style

Old Style ID Tag

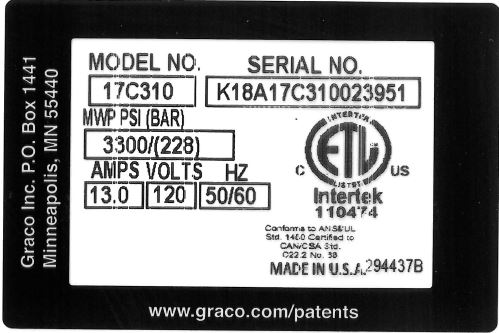

New Style

New Style ID Tag

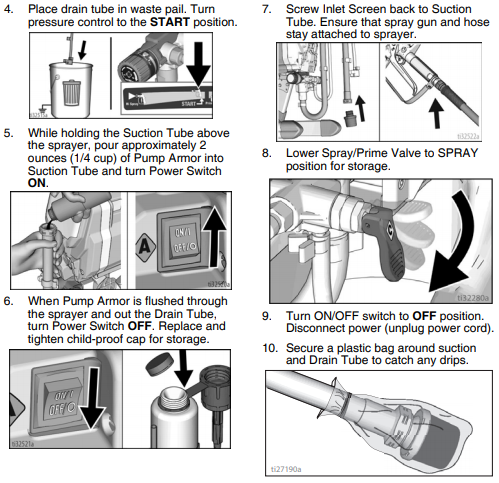

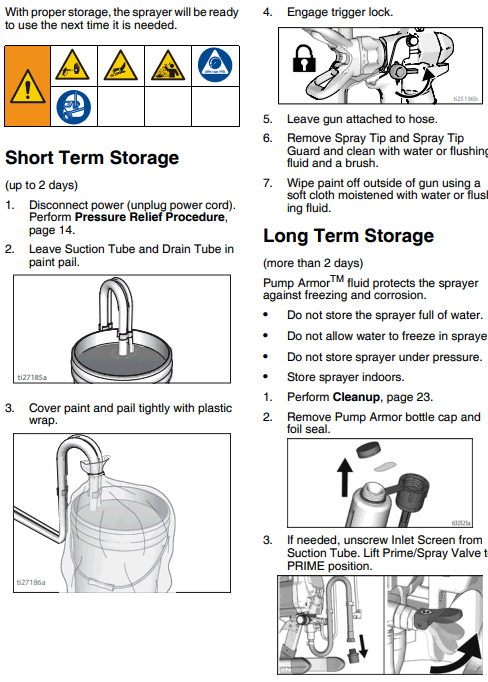

Proper long term and short term storage procedures

Magnum Sprayers

Magnum Sprayers
Magnum Sprayers

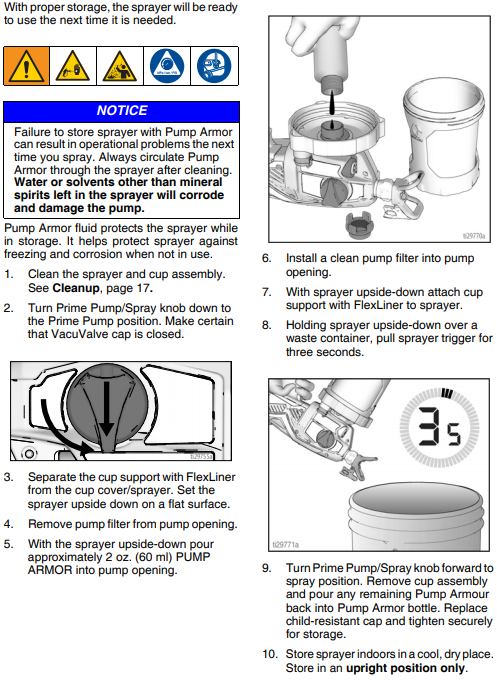

Handheld Sprayers

Handheld Sprayers

Visit this website: https://www.graco.com/us/en/homeowner/support/product-registration.html

What product information you’ll need:

  • Sprayer Name
  • 16 Digit Serial Number or BA##### Serial Number
  • Place of Purchase
  • Date of Purchase
  • Purchase Price

Magnum Sprayers do not need any lubrication or TSL

An exception would be the LTS190, LTS210, Pro210ES or Rental Pro 210 which would use TSL.

Follow this link:
Find A Distributor

12 Gauge minimum with a three prong connection
This means it has to have a ground connection.

Minimum generator wattages for sprayer operation:

  • LTS210, Pro210ES, Rental PRO 210 - minimum 3000 watt
  • ProX 17, 19, 21 - minimum 2500 watt
  • ProXLTS 170, 190  - minimum 2500 watt
  • Project Painter Plus - minimum 2500 watt
  • X5, X7, LTS 15, LTS 17 - minimum 2500 watt
  • ProLTS 17, ProLTS 19 - minimum 1500 watt
  • Prox 7, Prox 9 - minimum 1500 watt
  • Project Painter 5 - minimum 1500 watt
  • Project Painter 7 - minimum 1500 watt
  • Magnum DX - minimum 1500 watt
  • XR5, XR7, XR9 - minimum 1500 watt
  • All corded handhelds - minimum 1000 watt

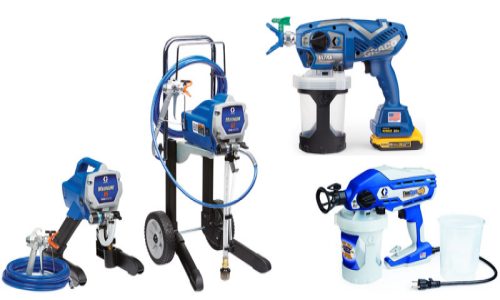

Magnums & Handhelds
